• Anodized aluminum profile; Power input: GST18 / Power output: GST18, without supply cable and mounting bracket

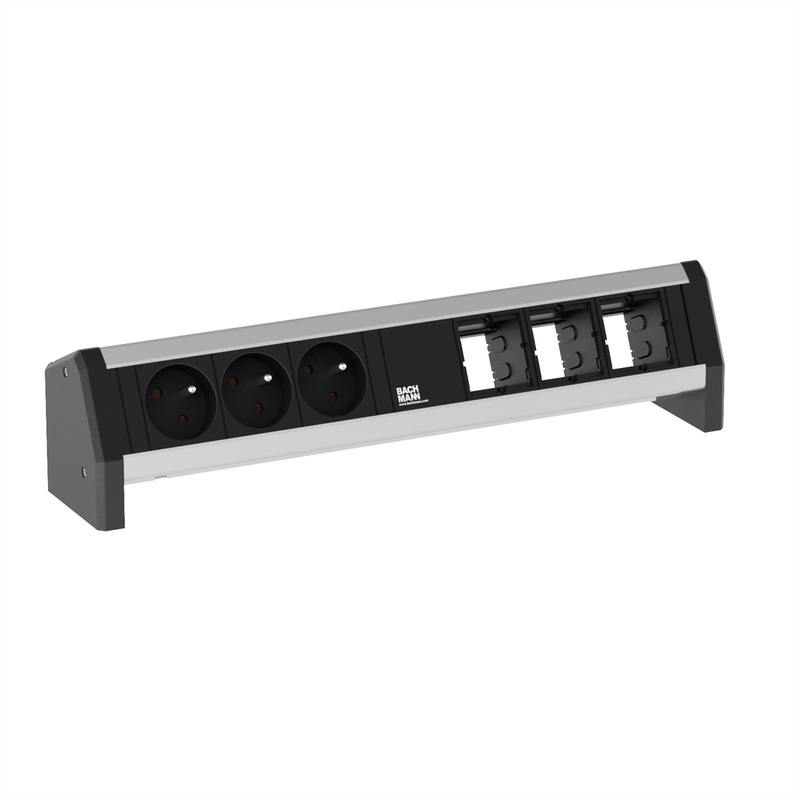

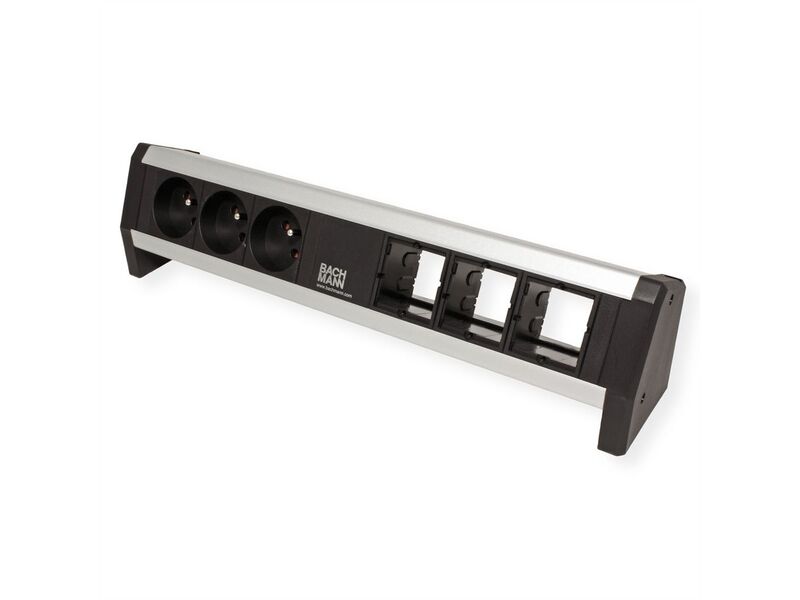

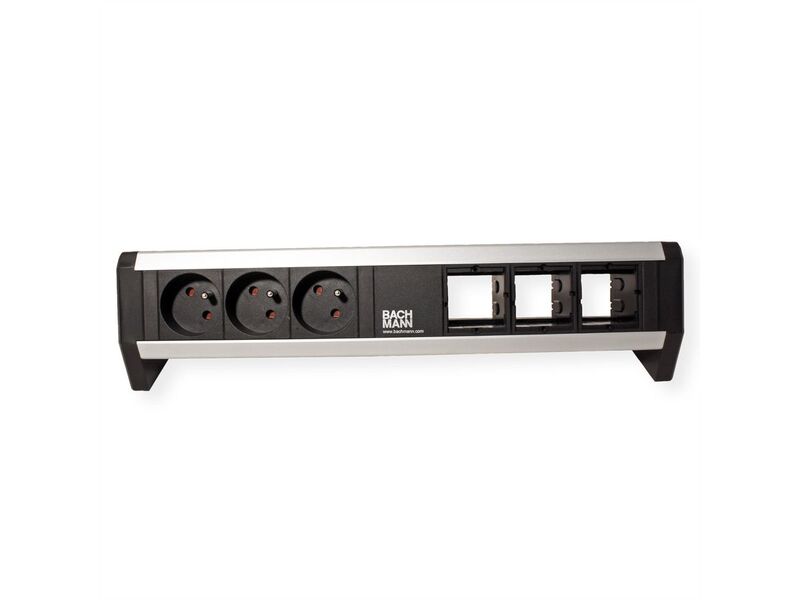

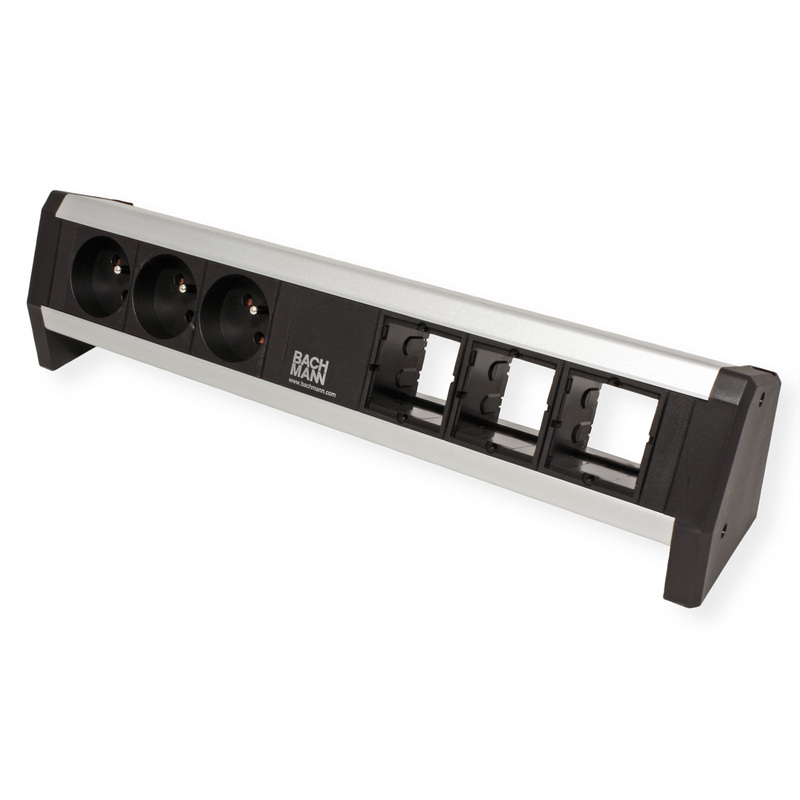

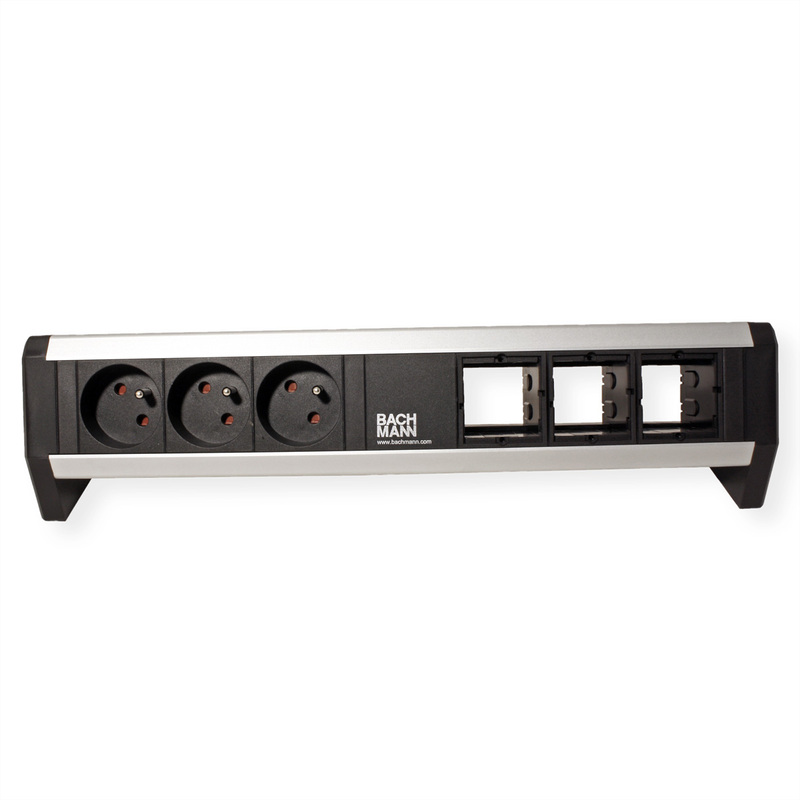

• 3 black earthed sockets, rotated 35°
• length 366 mm

• Flexible use anywhere
• With Wieland connector system or permanently connected cables
• With mounting or free standing on the table
• Custom versions for future security

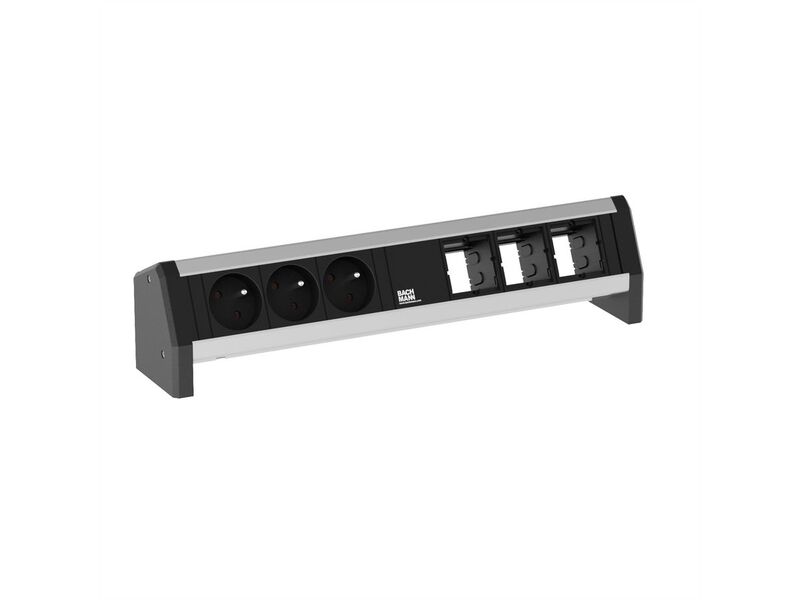

BACHMANN DESK 1 surface-mounted connection panels

DESK creates optimal conditions for data, media and energy management wherever these connections are used flexibly. For example, at home, in meeting rooms, in the home office or when desk sharing.

The modular design of DESK allows for individual assembly at the factory with exactly the communication and supply connections required for the respective application. For the power connection, you can choose between the flexible Wieland plug-in system and permanently connected cables. The data connections are equipped with adapters as standard, but can also be designed with permanently connected cables.

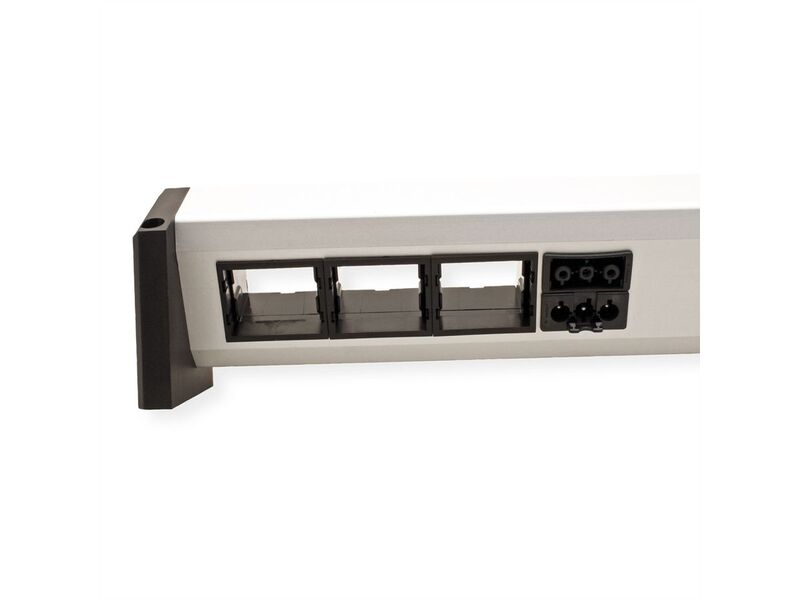

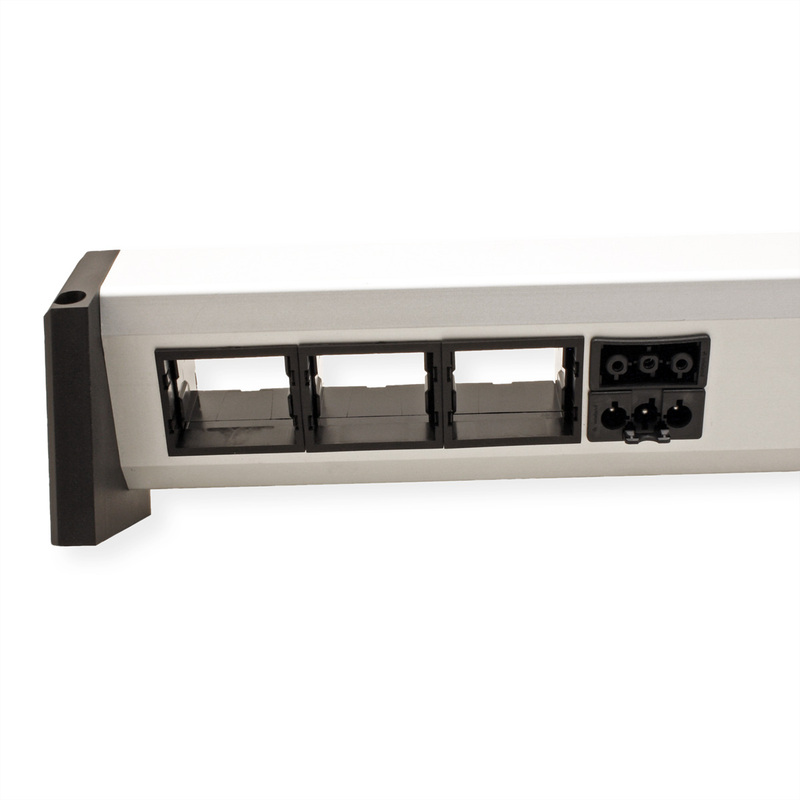

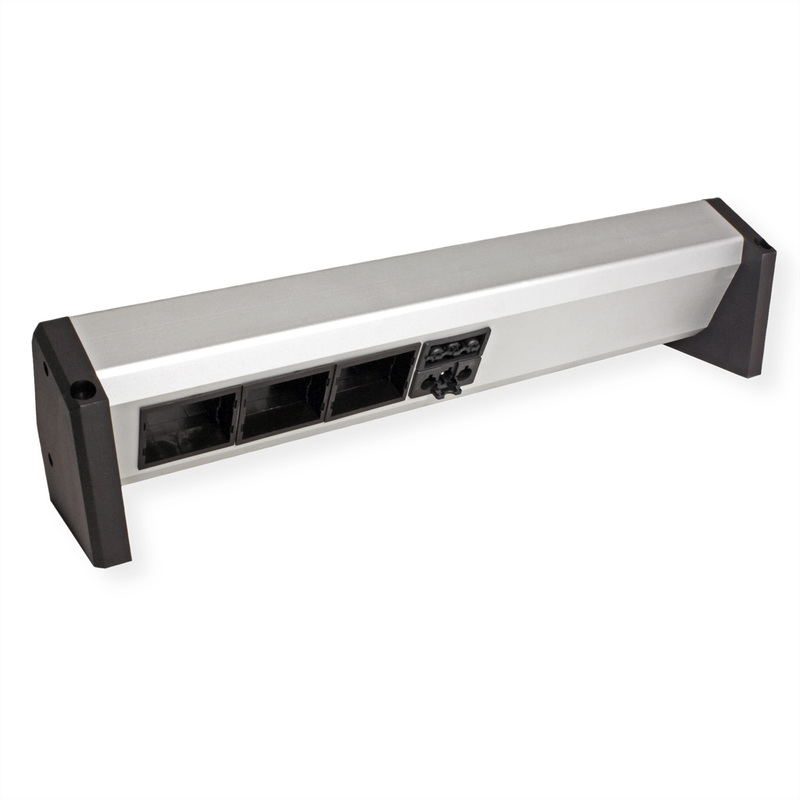

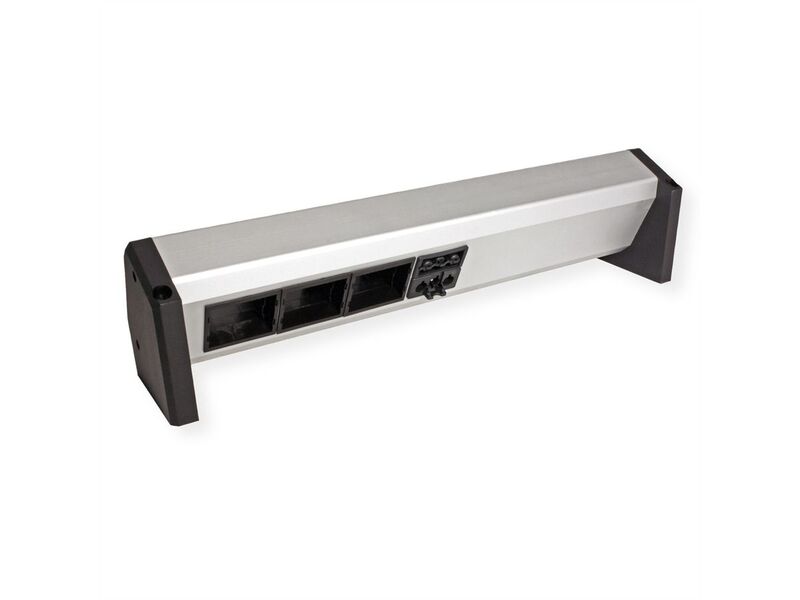

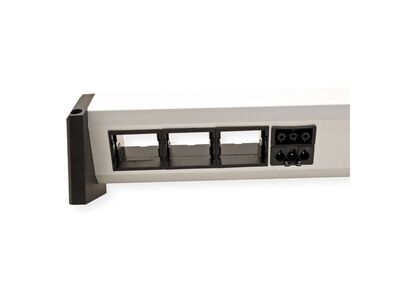

The standard power connection is designed with a Wieland connector built into the rear of the profile and offers the possibility of a safe power supply and at the same time flexibility in terms of the length of the cable. The cables can be swapped if necessary, for example to use longer or shorter power supply cables. As standard, we use the GST18 connector from Wieland, which is used worldwide. The plug connection has a standard locking mechanism and can be unlocked again if necessary. The contact connections of the plug connection are touch-safe. A power output socket offers the possibility of passing on power to the next module.

DESK 1 can be mounted quickly and easily to the edge of the table using a bracket set. A 4mm Allen key is required for installation to tighten the internal screw on the bracket. The fastening does not damage the furniture.

UTE Version - Suitable for France, Czech Republic, Slovakia
