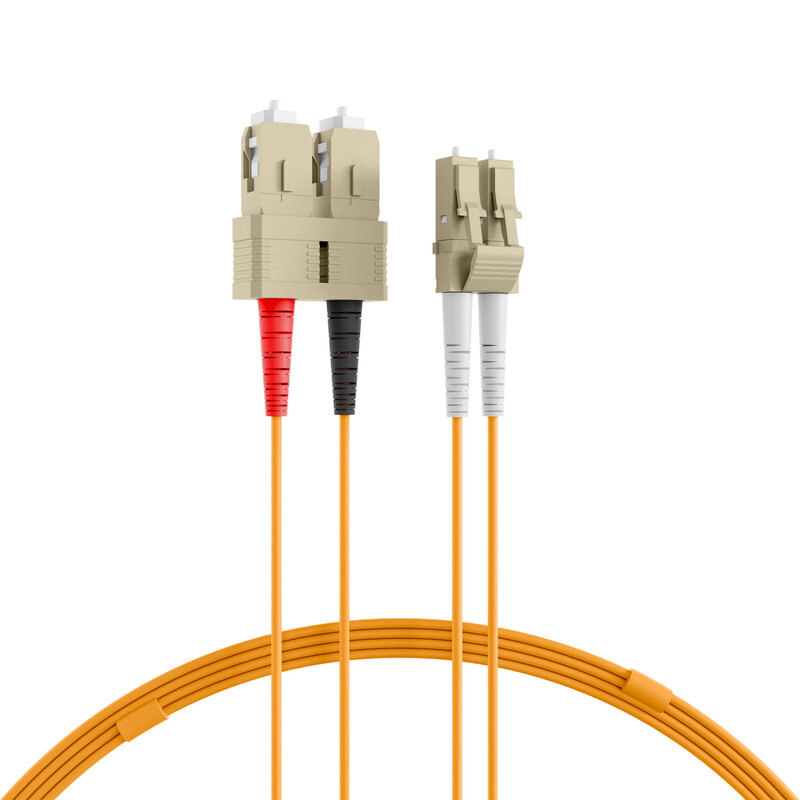

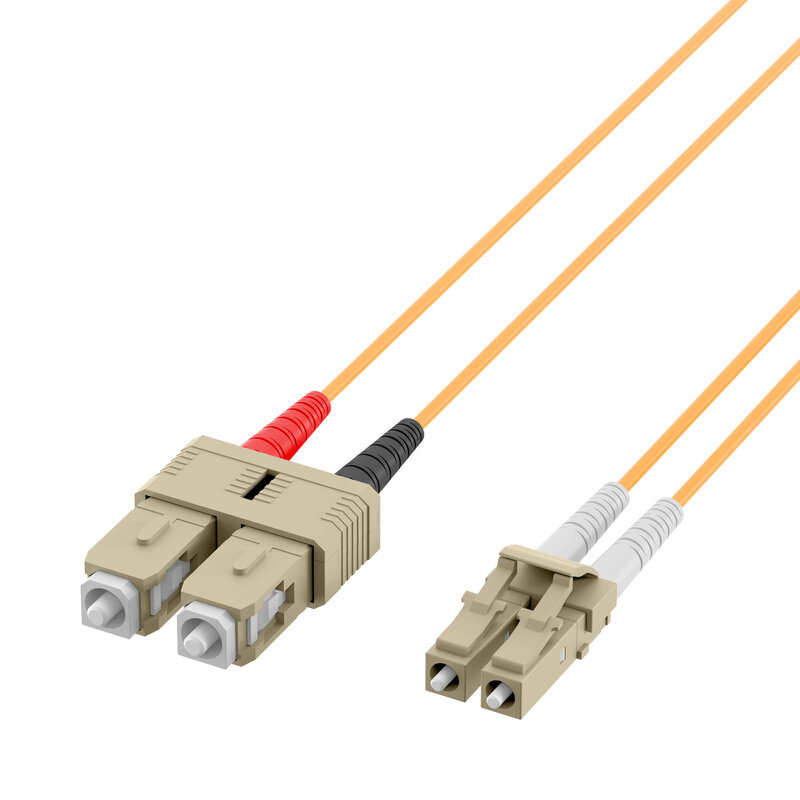

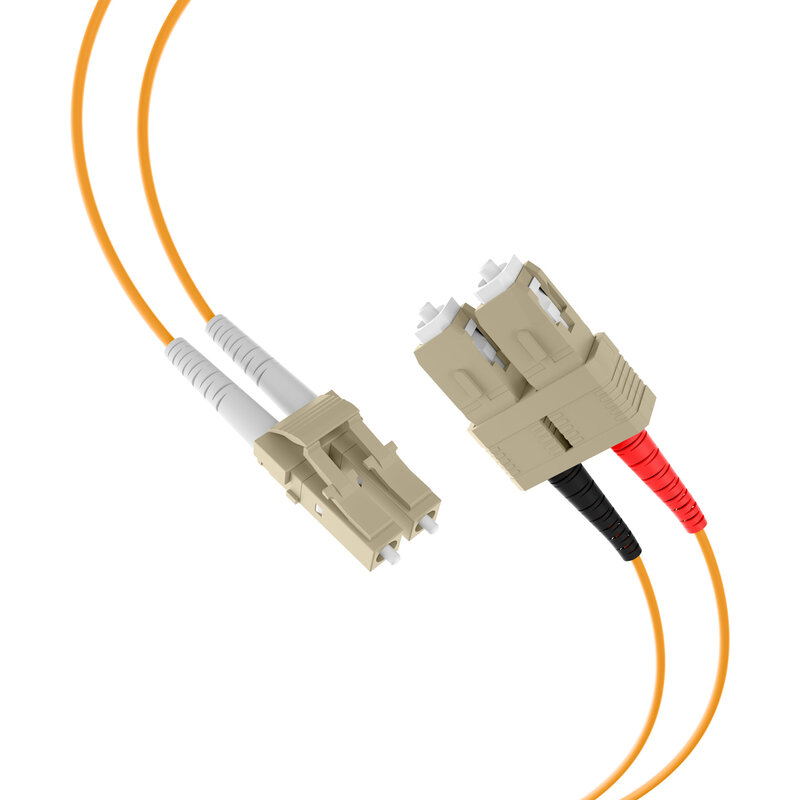

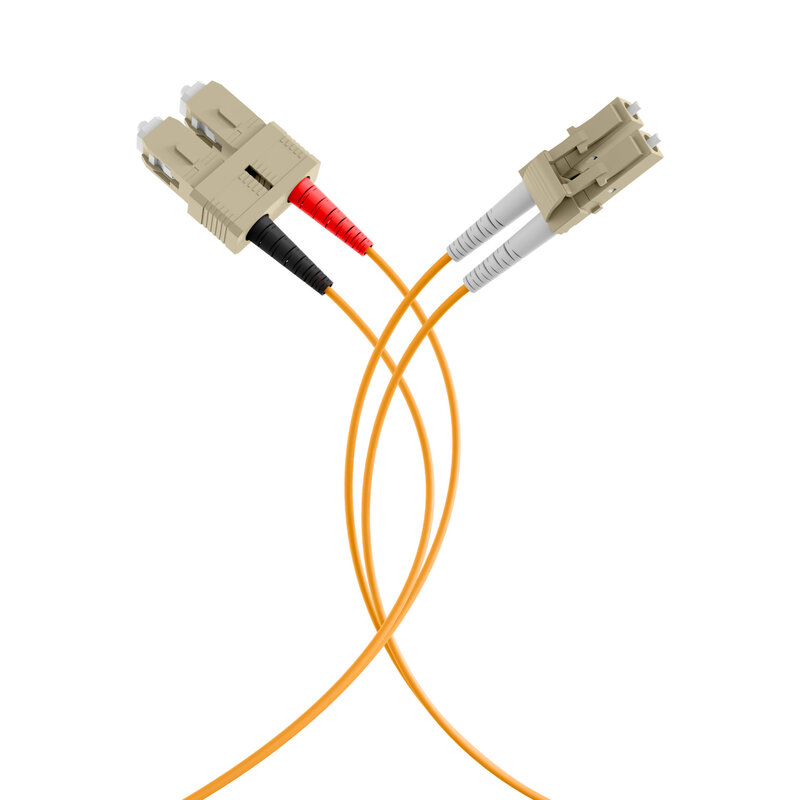

Fiber kábel LC-SC, 0.5m Duplex OM1(62.5/125µm), LSOH, 2mm, oranžový
Fiber kábel LC-SC, 0.5m Duplex OM1(62.5/125µm), LSOH, 2mm, oranžový
Duplexná prepojka LC/SC 62,5/125µ 0,5m, OM1, LSZH, oranžová Vlákno: I-VH 2G 62,5/125µ OM1 Vlákno/plášť: ..... celý popis
Konektory
LC-SC
Typ kábla
Duplex
Typ vlákna
Multimod OM1(62.5/125µm) oranžový
Dĺžka kábla
0.5m
Prevedenie kábla
okrúhly kábel ø2mm
Duplexná prepojka LC/SC 62,5/125µ 0,5m, OM1, LSZH, oranžová
Vlákno: I-VH 2G 62,5/125µ OM1
Vlákno/plášť: OM1 oranžová
Dĺžka: 0,5
Bunda: oranžová
Typ konektora: LC a SC béžová
PU: 1
kvalitné konektory Max. vložný úbytok 0,3dB podľa DIN 18600 režim 6 Vlnová dĺžka 850nm Samostatne balené Testovacia tabuľka priložená
Vlákno: I-VH 2G 62,5/125µ OM1
Vlákno/plášť: OM1 oranžová
Dĺžka: 0,5
Bunda: oranžová
Typ konektora: LC a SC béžová
PU: 1
kvalitné konektory Max. vložný úbytok 0,3dB podľa DIN 18600 režim 6 Vlnová dĺžka 850nm Samostatne balené Testovacia tabuľka priložená
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Parametre
Konektory
LC-SC
Typ kábla
Duplex
Typ vlákna
Multimod OM1(62.5/125µm) oranžový
Dĺžka kábla
0.5m
Prevedenie kábla
okrúhly kábel ø2mm
LSOH
Áno
Prevedenie konektora
Štandardné
