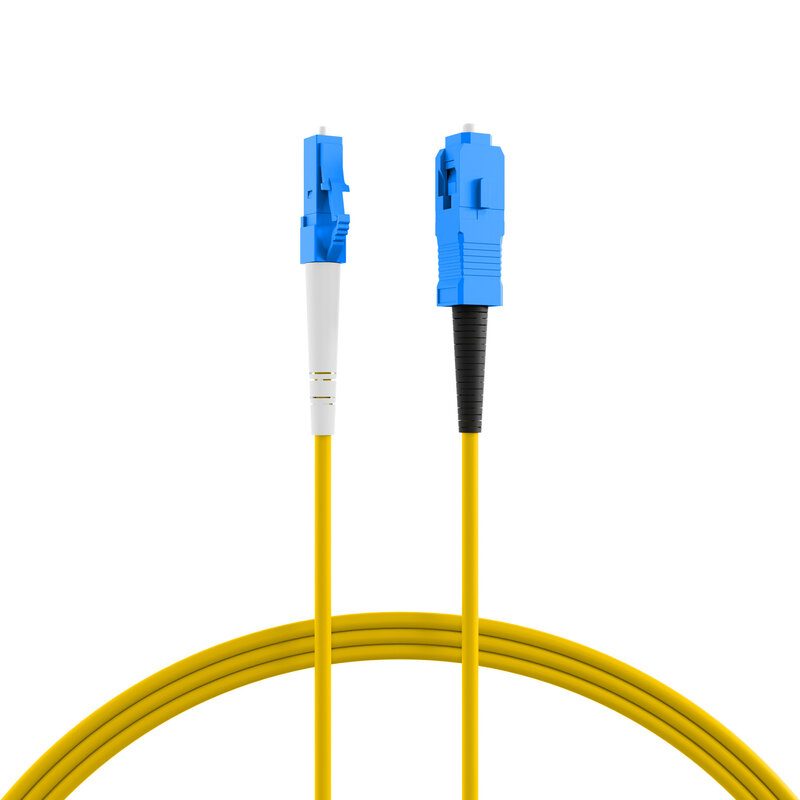

Fiber kábel LC-SC, 15m Simplex OS2(9/125µm), LSOH, G657.A2, ohybný, 2mm, žltý
Fiber kábel LC-SC, 15m Simplex OS2(9/125µm), LSOH, G657.A2, ohybný, 2mm, žltý
Simplex Jumper SC/LC 1E 9/125 15m, LSZH, OS2, žltý Vlákno: I-VH 1E 9/125µ OS2 Dĺžka: 15,0 Bunda: žl..... celý popis
Konektory
LC-SC
Typ kábla
Simplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
20m
Prevedenie kábla
okrúhly kábel ø2mm
Simplex Jumper SC/LC 1E 9/125 15m, LSZH, OS2, žltý
Vlákno: I-VH 1E 9/125µ OS2
Dĺžka: 15,0
Bunda: žltá
Zástrčka: LC / SC modrá
kvalitné konektory Max. vložný úbytok 0,3dB podľa DIN 18600 režim 7 Vlnová dĺžka 1310nm Samostatne balené Testovacia tabuľka je priložená
Vlákno: I-VH 1E 9/125µ OS2
Dĺžka: 15,0
Bunda: žltá
Zástrčka: LC / SC modrá
kvalitné konektory Max. vložný úbytok 0,3dB podľa DIN 18600 režim 7 Vlnová dĺžka 1310nm Samostatne balené Testovacia tabuľka je priložená
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Parametre
Konektory
LC-SC
Typ kábla
Simplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
20m
Prevedenie kábla
okrúhly kábel ø2mm
LSOH
Áno
Prevedenie konektora
Štandardné
