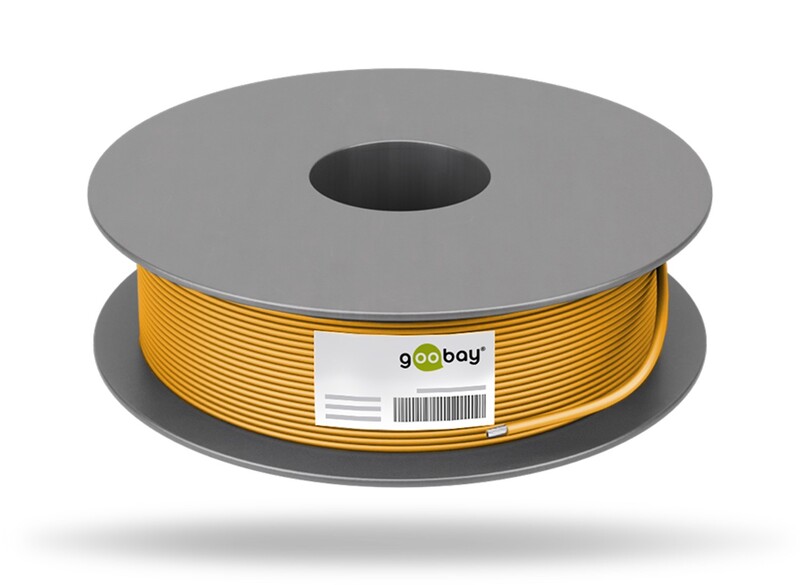

FTP lanko PVC 100m cat.5e, AWG26, 100Mhz, 1000Base-T, žltý, pomedený

Kód: {{ productModel }}

Výrobca: Goobay

Kat. č.: W.93266

EAN: 4040849932663

neukončený flexibilný dátový/patch kábel pre domáce/vnútorné použitie tienený krútený kábel L..... celý popis

Externý sklad

19,44 € s DPH 16,20 € bez DPH

Pridať do zoznamu

Popis a parametre produktu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

neukončený flexibilný dátový/patch kábel pre domáce/vnútorné použitie
tienený krútený kábel LAN
vonkajší štít: tienenie fólie
Ideálne pre SOHO aplikácie (malá kancelária, domáca kancelária) do max. prenosová dĺžka 40 m!

Technické špecifikácie

AWG	26/7 (uviaznutý)
Špecifikácia	CAT 5e
Priemer plášťa kábla (približne)	5,6 mm
Trieda tienenia	F/UTP
Počet tienenia	1 x
Označenia	ECA_CPR, CE, SOHO
Impedancia	100 O
max. šírku pásma	100 MHz
Typ kábla
Materiál plášťa kábla
Materiál vnútorného vodiča
Typ 1, tienenie
Jednotka spotreby
Požiarna trieda (CPR)	Eca
Dĺžka kábla	100 m
Farba	žltá
Farebné prevedenie	žltá

Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

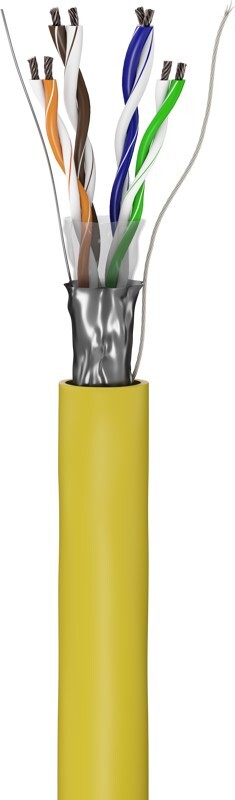

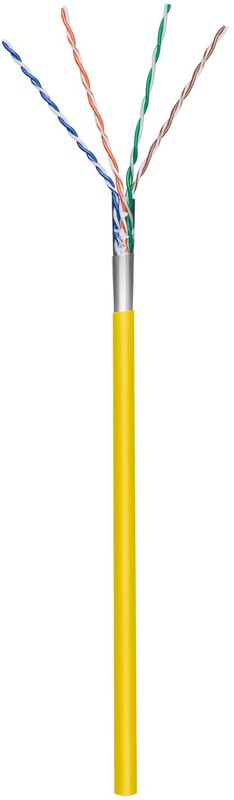

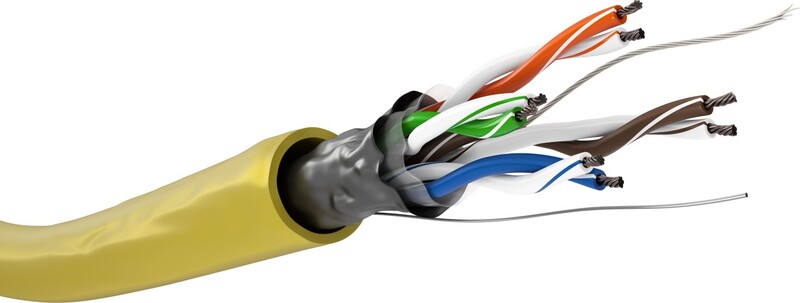

Shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
Unterminated patch cable for assembly and installation with IDC connection technology
Flexible cable for indoor assembly with a maximum transmission length of 40 m
Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides an ideal signal distribution with minimal losses
High-quality copper-clad aluminium wire (CCA) guarantees an excellent and powerful network connection.
Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
Complies with the Construction Products Regulation (CPR) and Eca fire protection class

Technical specifications

AWG	26/7 (stranded)
Cable length	100 m
Specification	CAT 5e
Cable sheath diameter (approx.)	5.6 mm
Diameter of insulated conductor	0.9 mm (+/-0.05)
Shielding class	F/UTP
Number of shieldings	1 x
Markings	ECA_CPR, CE, SOHO
Impedance	100 O
max. bandwidth	100 MHz
usable up to cable length	40 m
Cable type	round cable
Material cable sheath	PVC
Inner conductor material	CCA (copper-clad aluminium)
Type 1, shielding	foil (aluminium)
Consumption Unit	1 pc. cable reel
Fire class (CPR)	Eca
Color version	yellow
Color	yellow
