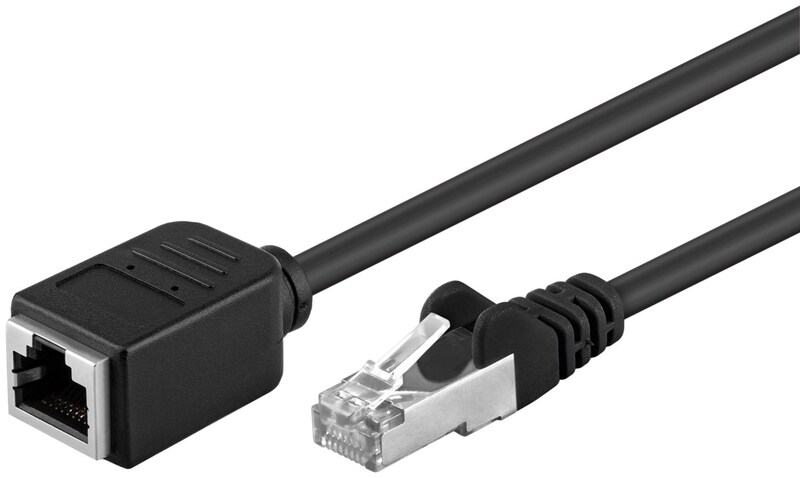

FTP Patchkábel 2m cat.5e, čierny, Cu, predlžovací M/F

Kód: {{ productModel }}

Výrobca: Goobay

Kat. č.: W.73388

EAN: 4040849733888

predĺženie tieneného sieťového kábla na rozšírenie vašich sieťových komponentov vonkajší štít..... celý popis

Externý sklad

5,00 € s DPH 4,17 € bez DPH

Pridať do zoznamu

Popis a parametre produktu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

predĺženie tieneného sieťového kábla na rozšírenie vašich sieťových komponentov
vonkajší štít: tienenie fólie
lisovaná zásuvka RJ45
s pozlátenými PIN
s indikáciou dĺžky na štíhlom odľahčení ťahu (iba zástrčka)
zástrčka s ochranou západky
pin out: 1:1, párová sekvencia podľa podľa EIA/TIA 568B

Technické špecifikácie

AWG	26/7 (uviaznutý)
Špecifikácia	CAT 5e
Priemer plášťa kábla (približne)	5,9 mm
Trieda tienenia	F/UTP
Počet tienenia	1 x
Kontaktovanie	EIA/TIA-568B
Označenia	WEEE, CE
Prevádzková teplota až	60 °C
Prevádzková teplota od	-20 °C
max. šírku pásma	100 MHz
Dĺžka kábla	2 m
Typ pripojenia	RJ45 samec (8P8C)
Pripojenie 2, typ	RJ45 samica (8P8C)

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

Prewired, shielded LAN cable extension with RJ45 plugs for connecting network components
Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.
High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
Length of the extension cable indicated on the overmoulded slimline strain relief.
Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1

Technical specifications

AWG	26/7 (stranded)
bending radius >	41.6 mm
Specification	CAT 5e
Shielding class	F/UTP
Number of shieldings	1 x
Contacting	EIA/TIA-568 B
Operating temperature up to	60 °C
Operating temperature from	-20 °C
max. bandwidth	100 MHz
Kink protection	both sides
Cable type	round cable
Material cable sheath	PVC
Inner conductor material	CU (copper)
Type 1, shielding	foil (aluminium)
Connection, shielding	yes
Connection, type	RJ45 male (8P8C)
Connection 2, type	RJ45 female (8P8C)
Latch protection	unilaterally
Color	black
Color version	black
Consumption Unit	1 pc. in polybag
Special feature	Length indication on connector
Cable length	2 m
Cable sheath diameter (approx.)	5.2 mm
Markings	WEEE, CE
Connection, contact material	gold-plated 3µm
