• IEC C20 to IEC C19 Mains Extension Cable for use in professional areas and private sectors
• Provides max. 16A/250V to a device
• Robust PVC/PBT housing and PVC cable jacket, lead-free connectors (<0.1% lead in brass)
• High temperature resistance allows the cable to be used in non air-conditioned areas
• 10 year warranty

Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.

IEC C20 to IEC C19 cables are often used in the IT environment, e.g. in server cabinets or with power distribution units. Typically they are utilized with devices that require higher current than C13 and C15 connectors can provide.

The brass used in the connectors has a lead content of far below 0.1% and is therefore SVHC-free, as are all other materials used in these cables.

Please note that this cable is for use in dry areas only.

IEC C19 to IEC C20 Mains Extension Cables are available in blue, red or orange colour.

Connectors

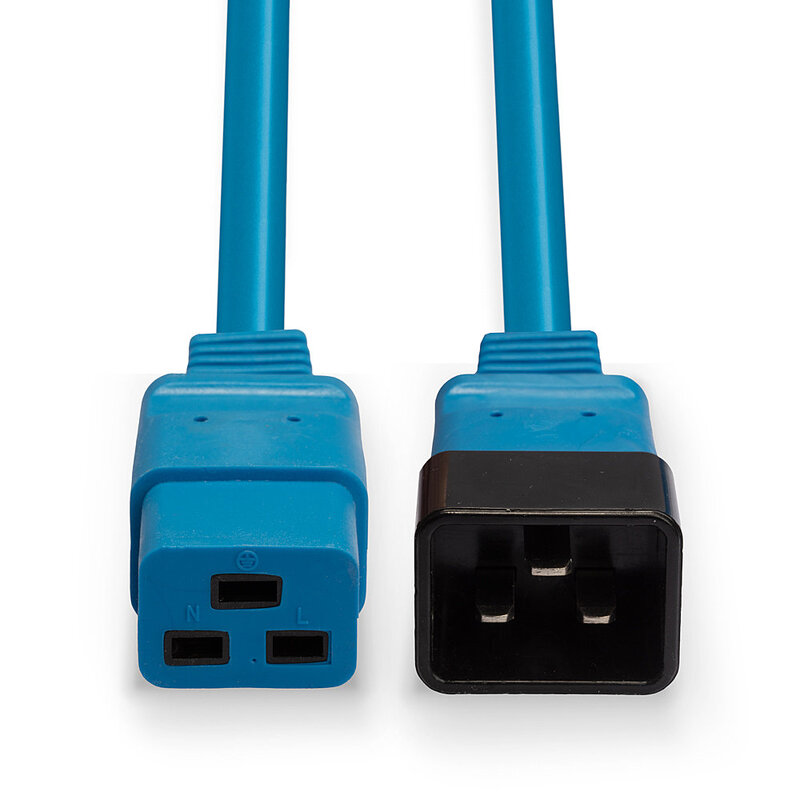

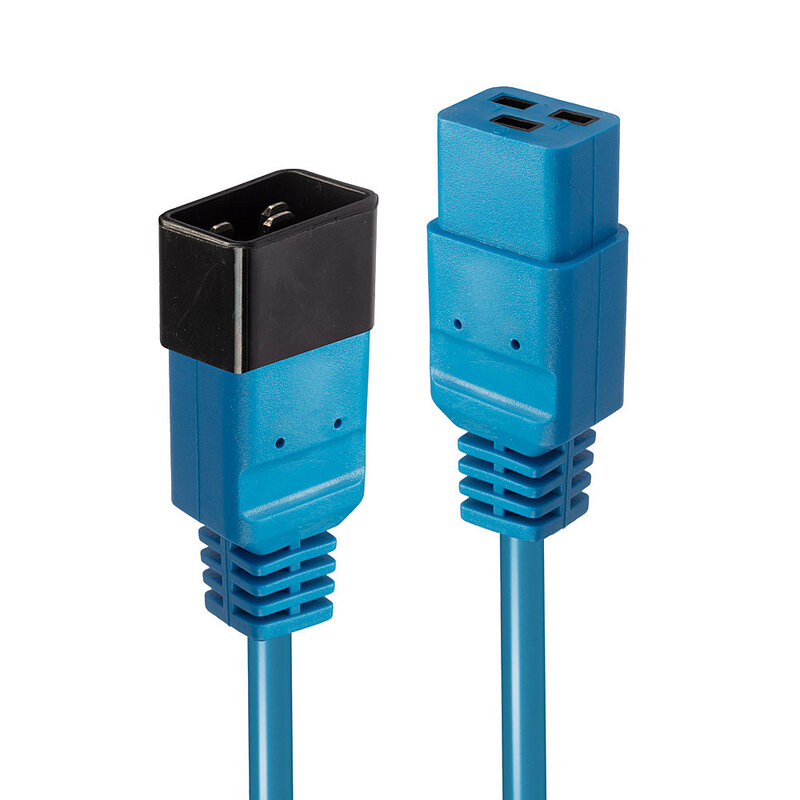

• Connector A: IEC C19
• Connector B: IEC C20
• Housing Material:
  • A: PVC & PBT
  • B: PVC
• Pin Construction:
  • A: Brass
  • B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • A: 34x79x25.7mm (1.34x3.11x1.01in)
  • B: 31.3x79x24mm (1.23x3.11x0.94in)

Cable Construction

• Length: 2m (6.56ft)
• Colour: Blue
• Conductor Material: Copper
• Cable Material: H05VV-F 3G 1.5mm²
• Number of Wires: 3
• Wire Gauge: 1.5mm²
• Jacket Diameter: 8mm (0.31in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 16A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30121
• EAN: 4002888301213

This product is also available in other lengths

• 30120 - 1m (3.28ft)
• 30121 - 2m (6.56ft)
• 30122 - 3m (9.84ft)
