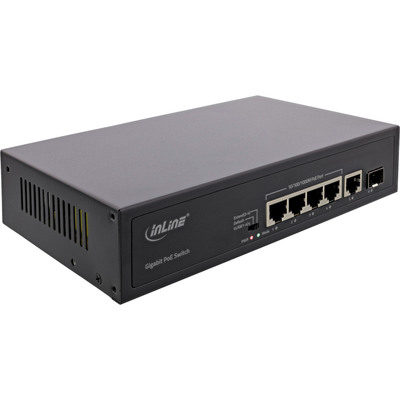

The InLine® Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, offers a fast network connection as well as PoE+ support on 4 of the 5 ports. The SFP port supports SFP modules with a bandwidth of 1.25 Gb/s. The 5x 10/100/1000Mb/s auto-negotiation RJ45 ports all support Auto MDI/MDIX.

The switch is an easy-to-use and powerful solution to upgrade your old network to a Gigabit network and to power PoE-enabled devices such as IP cameras, IP phones, access points, etc. via the connected patch cable.

• Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x Flow control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
• Ports: 4x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X, PoE+ support 1x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X 1x 1000Base-X SFP port
• Three modes: Normal operation, VLAN port isolation (ports 1-4), range extension up to 250 metres via patch cable at 10 Mb/s (ports 3 and 4)
• PoE Type of power supply: Endspan
• PoE output voltage: Per port 52V DC
• PoE output power: Per port max. 30 watts
• Total power: 65 watts

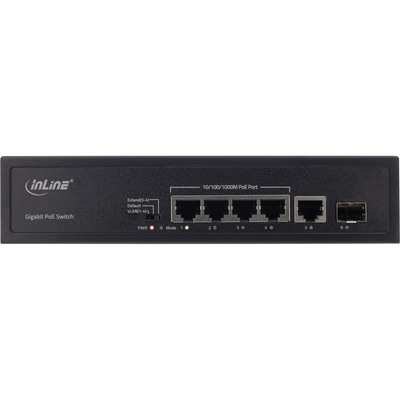

• LED indicators: Power, mode, port (1-6)
• Dimensions (W x D x H): 20.2 x 12 x 4.5 cm
• Weight: approx. 616 g

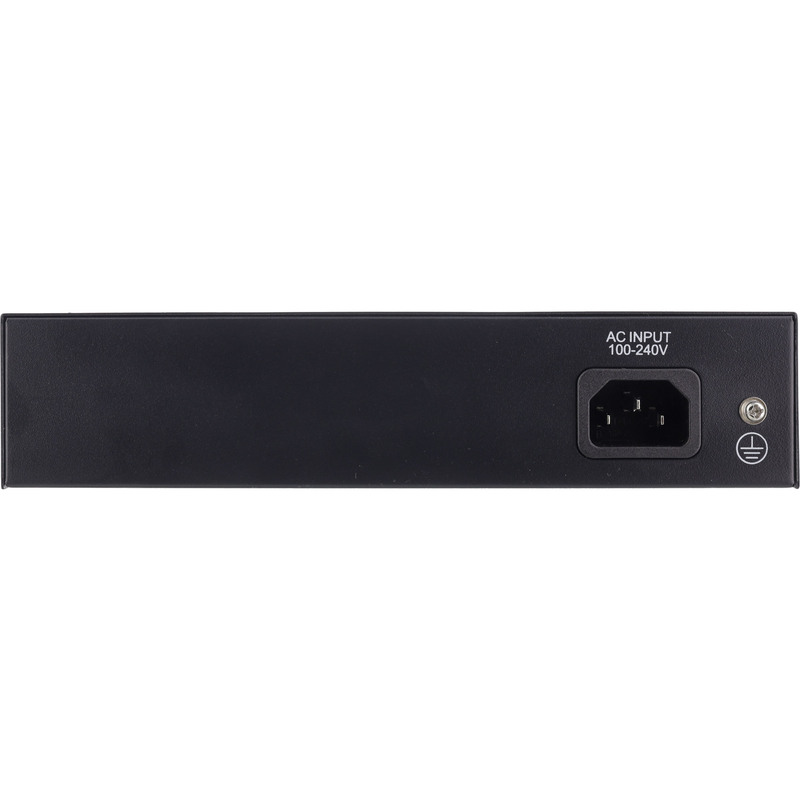

• Power consumption: 100-240V AC, 50/60 Hz
• Ambient conditions: Operating temperature 0-40°C, storage temperature -20-70°C, humidity 20-95% non-condensing

Content of delivery:

• 1x InLine® PoE+ Gigabit Network switch
• 1x manual (German/English)
• 1x power cable
• 4x rubber feet
