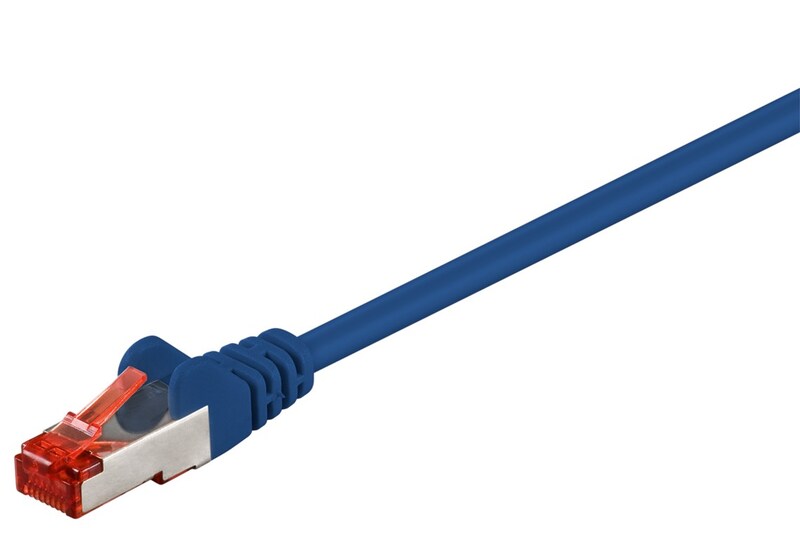

S/FTP (PiMF) Patchkábel 0.25m cat.6, modrý, CCA
S/FTP (PiMF) Patchkábel 0.25m cat.6, modrý, CCA
Technické špecifikácie AWG.. celý popis
Technické špecifikácie
| AWG | 27/7 (uviaznutý) |
| Ochrana proti zalomeniu | |
| Typ kábla | |
| Špecifikácia | CAT 6 |
| Priemer plášťa kábla (približne) | 5,9 mm |
| Materiál plášťa kábla | |
| Materiál vnútorného vodiča | |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | |
| Typ 2, tienenie | |
| Pripojenie, tienenie | |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | |
| Označenia | WEEE, CE |
| Farba | |
| Jednotka spotreby | |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 250 MHz |
| Dĺžka kábla | 0,25 m |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable with 2x RJ45 plugs for connecting network components
- CAT 6 internet cable suitable for Gigabit Ethernet with a speed of up to 10/100/1000 Mbit/s
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy PVC jacket effectively protect the Ethernet cable from breakage.
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Length of the network cable indicated on the overmoulded slimline strain relief.
Technical specifications
| AWG | 27/7 (stranded) |
| bending radius > | 48 mm |
| Specification | CAT 6 |
| Cable sheath diameter (approx.) | 5.9 mm |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Contacting | EIA/TIA-568 B |
| Markings | WEEE, CE |
| Operating temperature up to | 60 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 250 MHz |
| Kink protection | both sides |
| Cable type | round cable |
| Material cable sheath | PVC |
| Inner conductor material | CCA (copper-clad aluminium) |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Connection, shielding | yes |
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Color | blue |
| Color version | blue |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 0.25 m |
Parametre
Kategória
cat. 6 / class E 250MHz / 1000 BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
0.25m
Farba
modrá
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
