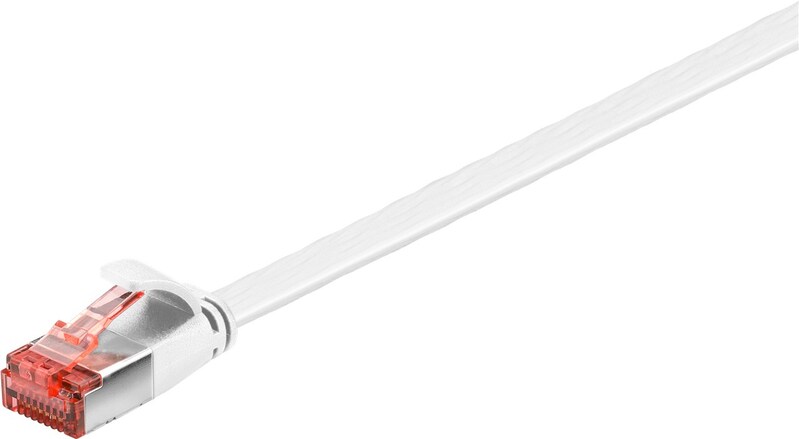

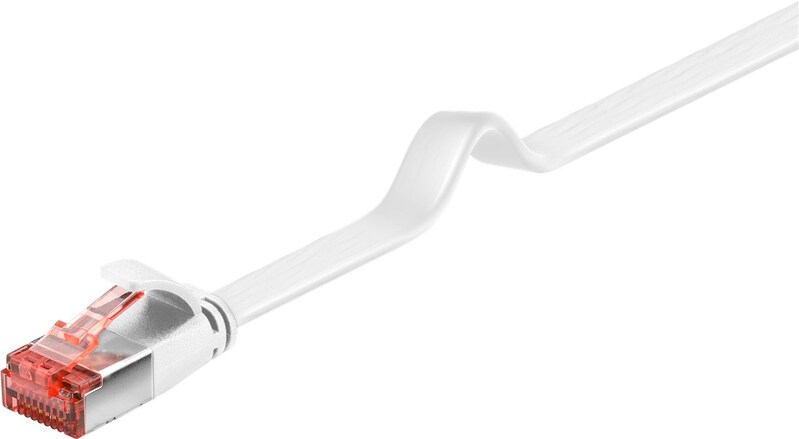

U/FTP (PiMF) Patchkábel 3m cat.6, biely, plochý, Cu

Kód: {{ productModel }}

Výrobca: Goobay

Kat. č.: W.94918

EAN: 4040849949180

Ideálne za soklové lišty na položenie pod koberce alebo inú podlahu. Technické špecifikácie..... celý popis

Externý sklad

4,09 € s DPH 3,41 € bez DPH

Pridať do zoznamu

Popis a parametre produktu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

Ideálne za soklové lišty na položenie pod koberce alebo inú podlahu.

Technické špecifikácie

AWG	32/7 (uviaznutý)
Ochrana proti zalomeniu	obe strany
Typ kábla	plochý kábel
Špecifikácia	CAT 6
šírka plášťa kábla	6.6
Materiál plášťa kábla	PVC
výška plášťa kábla	1.8
Materiál vnútorného vodiča	CU (meď)
Trieda tienenia	U/FTP
Počet tienenia	1 x
Typ 1, tienenie	fólia (alu) PiMF
Kontaktovanie	EIA/TIA-568B
Ochrana západky	obe strany
Označenia	WEEE, CE
Jednotka spotreby	1 ks. v polybagu
Prevádzková teplota až	60 °C
Prevádzková teplota od	-20 °C
max. šírku pásma	250 MHz
Dĺžka kábla	3 m

Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

Prewired, shielded LAN cable with 2x RJ45 plugs for connecting network components

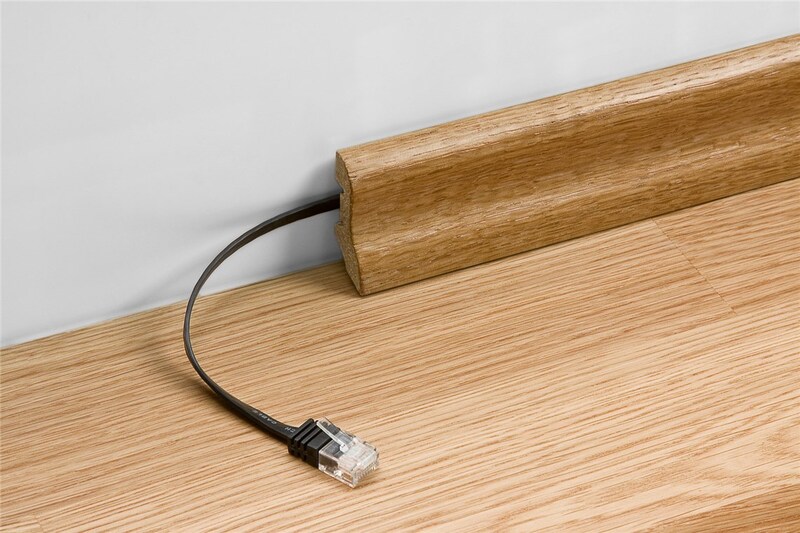

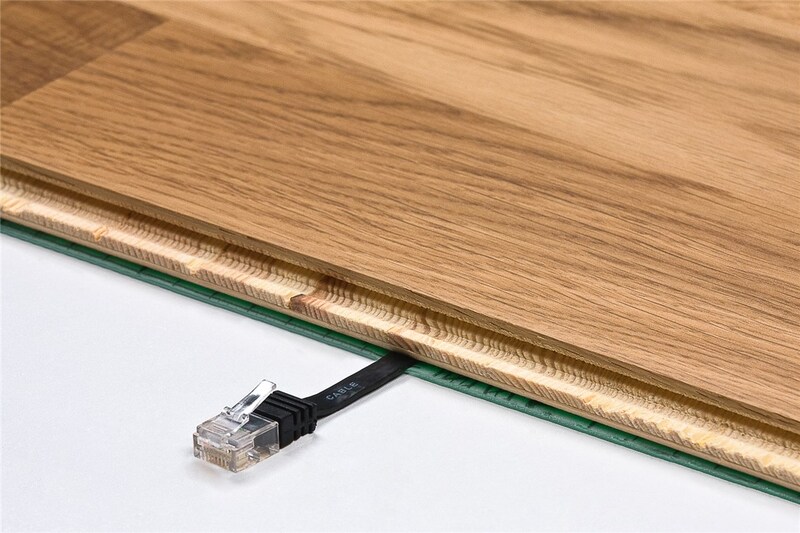

Extremely flat Ethernet cable with low bending radius and high flexibility, ideal for space-saving installation under floors or skirting boards.
Network flat cable with external dimensions of approx. 1.8 x 6.6 mm
U/FTP shield: aluminium foil shield for individual wire pairs (PiMF)
Short RJ45 connector with latch protection
High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.

Technical specifications

AWG	32/7 (stranded)
bending radius >	15 mm
Specification	CAT 6
width of cable sheath	6.6 mm
height of cable sheath	1.8 mm
Shielding class	U/FTP
Number of shieldings	1 x
Contacting	EIA/TIA-568 B
Markings	WEEE, CE
Operating temperature up to	60 °C
Operating temperature from	-20 °C
max. bandwidth	250 MHz
Kink protection	both sides
Cable type	flat cable
Material cable sheath	PVC
Inner conductor material	CU (copper)
Type 1, shielding	foil (alu) PiMF
Connection, type	RJ45 male (8P8C)
Connection 2, type	RJ45 male (8P8C)
Latch protection	both sides
Color	white
Color version	white
Consumption Unit	1 pc. in polybag
Cable length	3 m
