Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.

Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables

Tension relief reinforced with aramid yarn

Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034

EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)

100% tested and with inpidual measurement report

PRODUCT FEATURES

Fibre type: Singlemode

Category: OS2 acc. to ITU-T G.652.D

Bend optimized fiber: no

Number of fibres: 2

Anti-kink sleeve: put-on

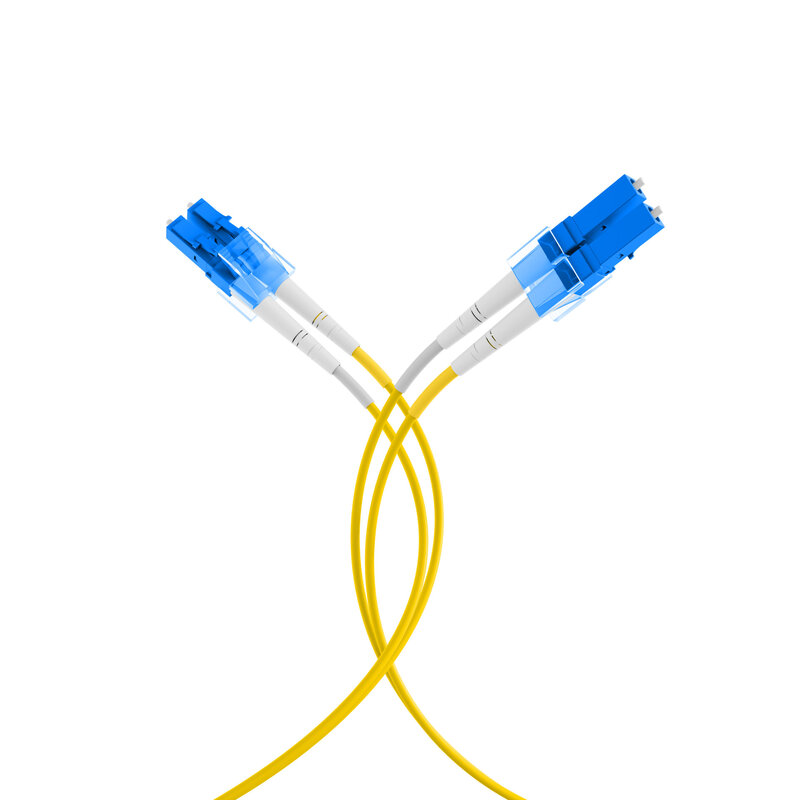

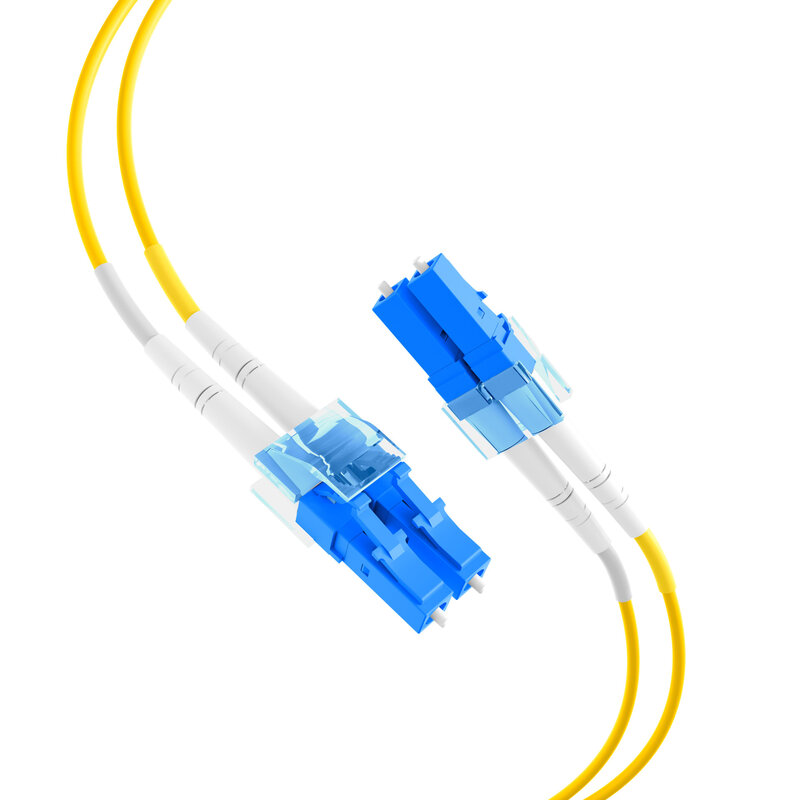

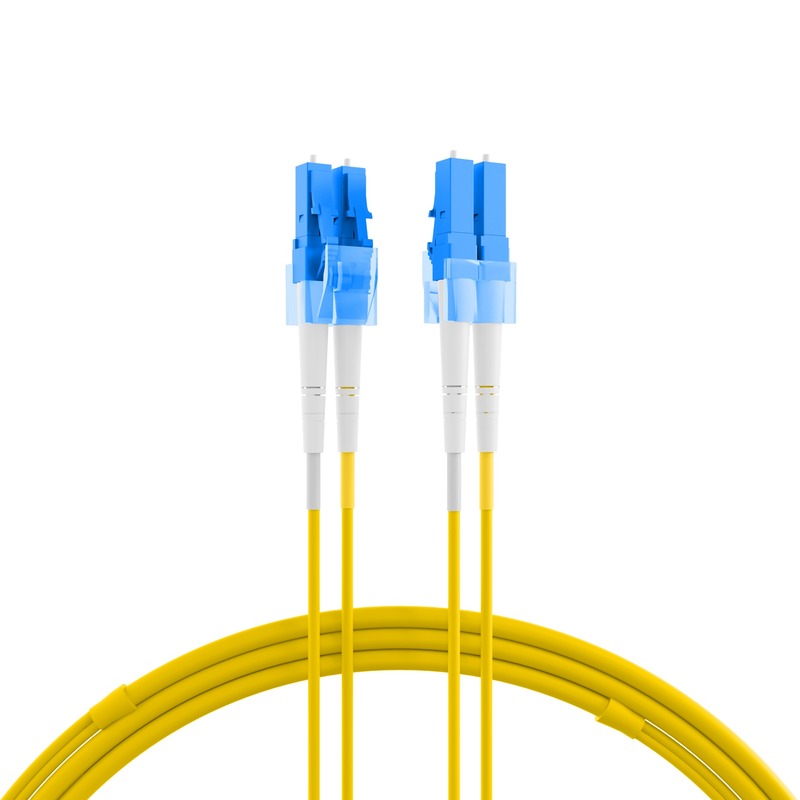

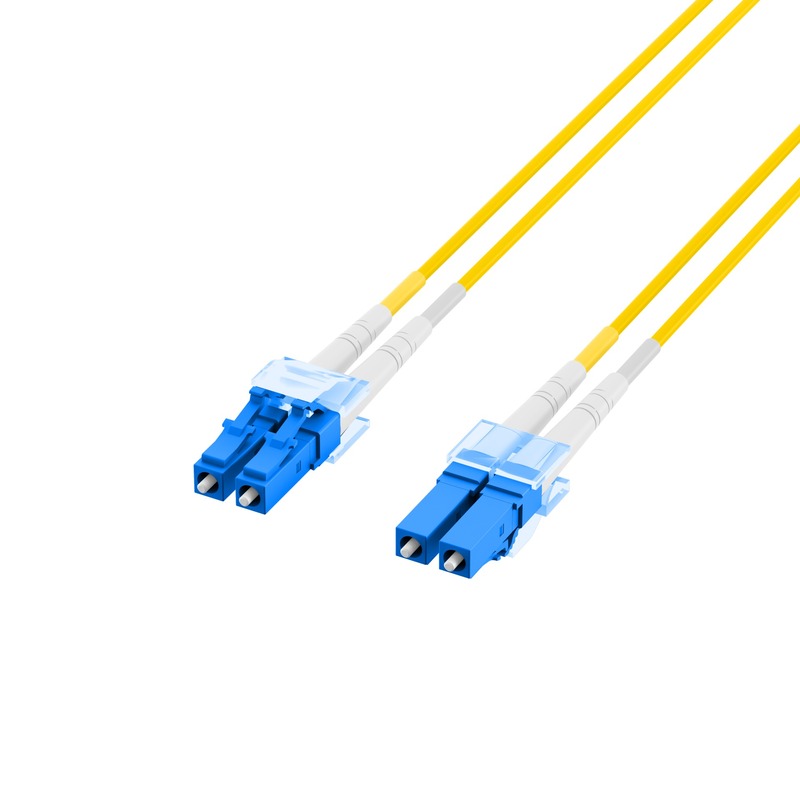

Type of connector connection 1: LC-Duplex

Connector colour 1: blue

Type of connector connection 2: LC-Duplex

Connector colour 2: blue

Max. Tension: 160 N

Min. Bending radius (Static): 10xOD

Min. Bending radius (Dynamic): 20xOD

Cable type: Simplex

Cable Construction: Duplex

Cable Ø: 2.0 mm

Colour outer sheath: yellow

Jacket Material: LSZH

Flame retardant: According to EN 50265-2-1

Halogen free: acc. IEC60754-1

Low smoke: acc. IEC61034-1

Operating Temperature: -20 – 75 °C

Storage Temperature: -20 – 85 °C

Insertion loss 1310nm: <0.3 dB

Quality class singlemode: B/2 acc. IEC 61753-1

Connector Conform to Standard: IEC 61754-20

Cable Conform to Standard: IEC 60793-2
