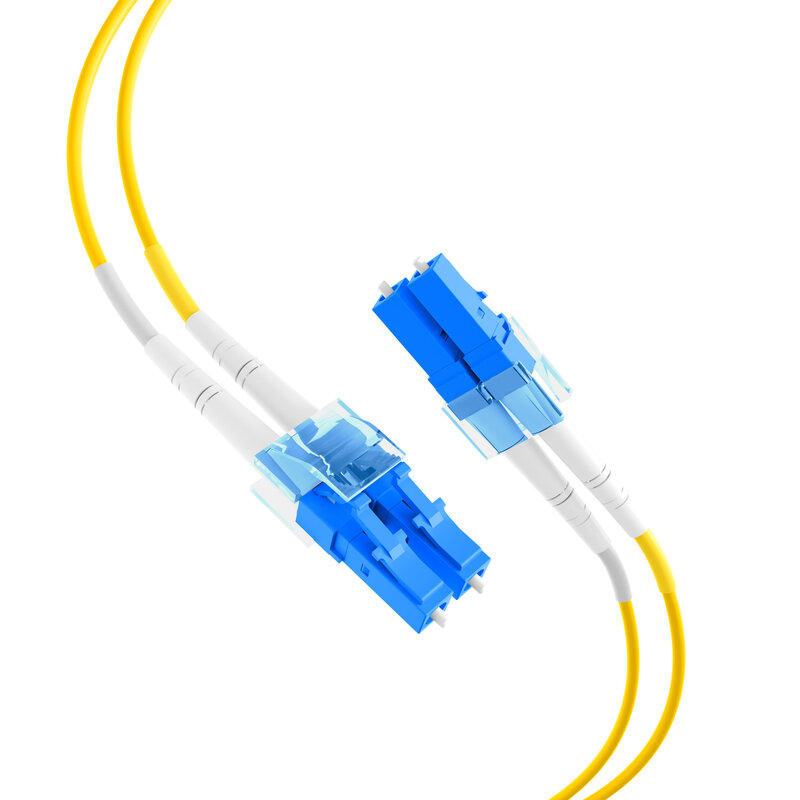

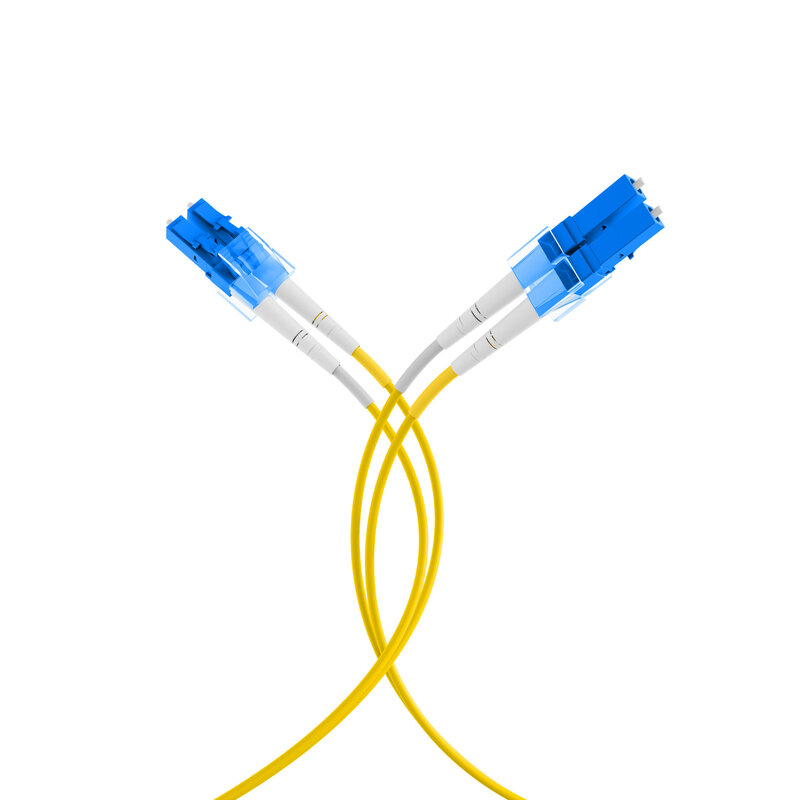

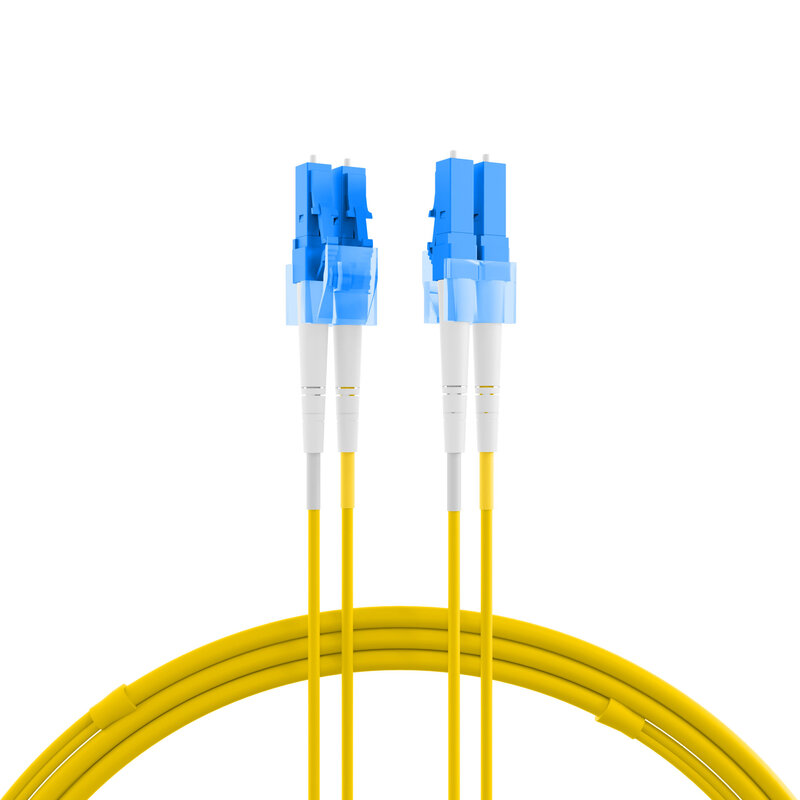

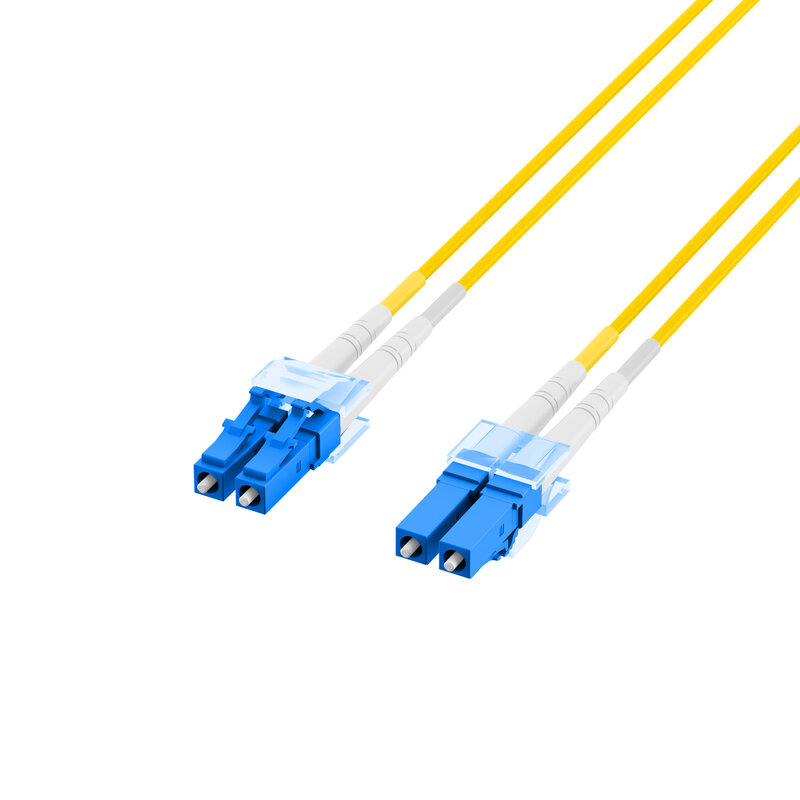

Fiber kábel LC-LC, 30m Duplex OS2(9/125µm), LSOH, 2mm, žltý
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801... celý popis
Predajňa | dostupné ihneď |
---|---|
E-shop | doručenie kuriérom |
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with inpidual measurement report
PRODUCT FEATURES
Fibre type: Singlemode
Category: OS2 acc. to ITU-T G.652.D
Bend optimized fiber: no
Number of fibres: 2
Anti-kink sleeve: put-on
Type of connector connection 1: LC-Duplex
Connector colour 1: blue
Type of connector connection 2: LC-Duplex
Connector colour 2: blue
Max. Tension: 160 N
Min. Bending radius (Static): 10xOD
Min. Bending radius (Dynamic): 20xOD
Cable type: Simplex
Cable Construction: Duplex
Cable Ø: 2.0 mm
Colour outer sheath: yellow
Jacket Material: LSZH
Flame retardant: According to EN 50265-2-1
Halogen free: acc. IEC60754-1
Low smoke: acc. IEC61034-1
Operating Temperature: -20 – 75 °C
Storage Temperature: -20 – 85 °C
Insertion loss 1310nm: <0.3 dB
Quality class singlemode: B/2 acc. IEC 61753-1
Connector Conform to Standard: IEC 61754-20
Cable Conform to Standard: IEC 60793-2
